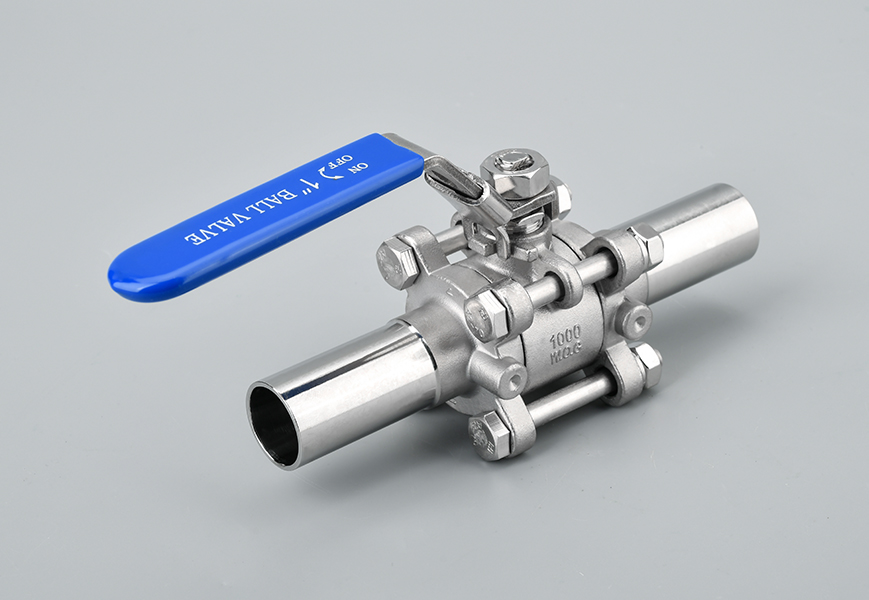

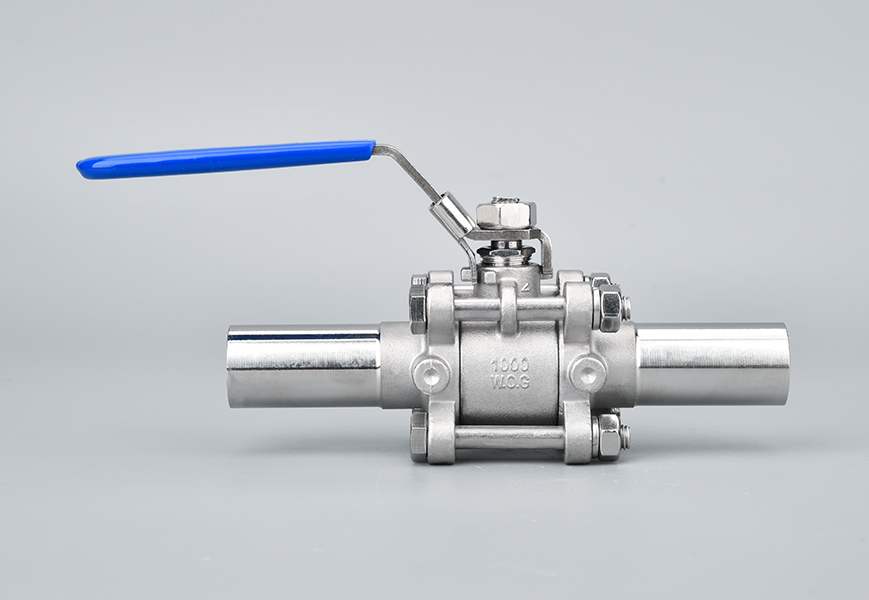

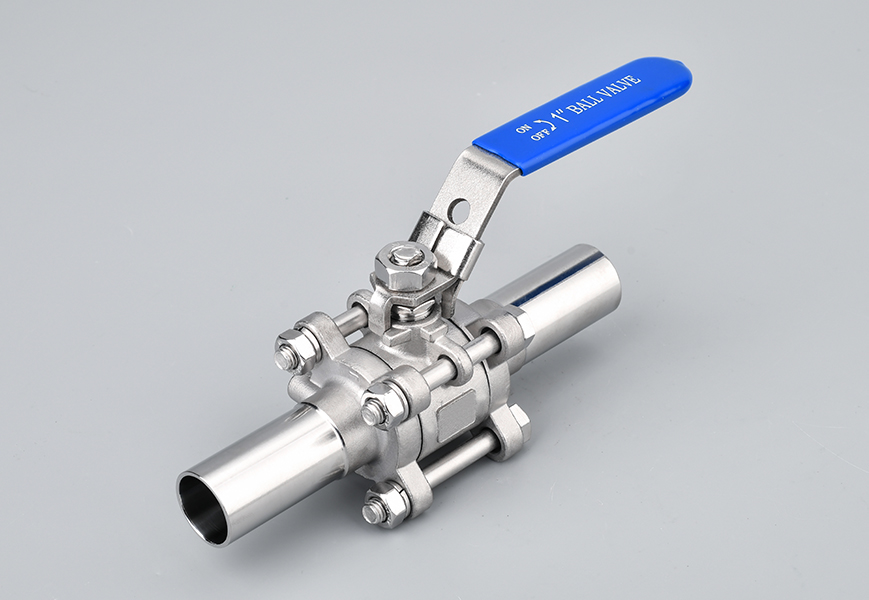

執(zhí)行標準
| 防爆闊桿/全通徑 | |
| 適用溫度范圍 | -20 to 120℃ |
| 使用壓力 | ≤1.6MPa |
| 適用介質 | 水、氣、油 |
| 設計制造 | GB/T-12224/ANSIB16.34 |
| 螺紋標準 | BSPT/BSP/NPT/DIN/JIS/RC/G |
| 檢查與測試 | GB/T-13927/API598 |
| 氣壓測試 | 0.8MPa |
材料列表
| 部件名稱 | 材質 | |
| 閥體 | CF8M | CF8 |
| 閥蓋 | CF8M | CF8 |
| 球 | SS316 | SS304 |
| 閥桿 | SS316 | SS304 |
| 閥座 | PTFE | PTFE |
| 桿密封 | PTFE | PTFE |
| 中頭墊 | PTFE | PTFE |
| 填料壓套 | SS202 | SS202 |
| 手柄 | SS202 | SS202 |
| 鎖片 | - | - |
| 膠套 | - | - |
| 螺母 | SS302 | SS202 |
| 螺帽 | PLASTIC | PLASTIC |
| 彈墊 | SS304 | SS304 |
| 螺帽 | SS304 | SS304 |
| 彈墊 | SS304 | SS304 |

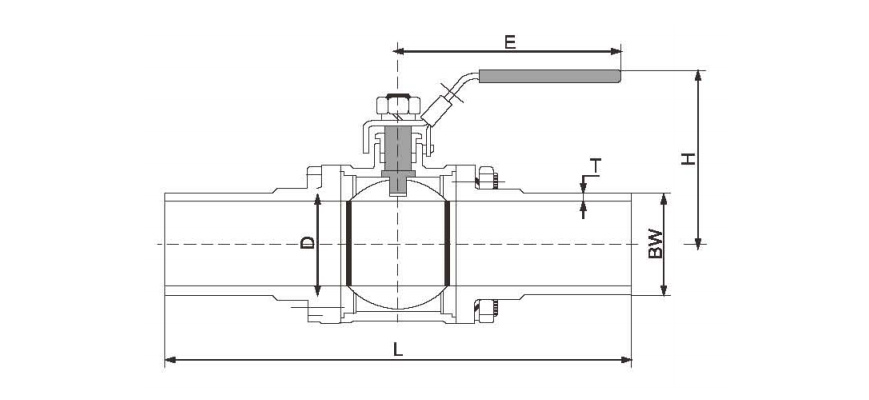

外形尺寸
| DN | SIZE | L | BW | E | H | D | T |
| 15 | 1/2" | 135 | 10.2 | 122.9 | 58.0 | 12.70 | 1.24 |
| 20 | 3/4" | 135 | 15.8 | 122.9 | 61.0 | 19.05 | 1.65 |
| 25 | 1" | 152 | 22.1 | 144.9 | 68.0 | 25.40 | 1.65 |
| 32 | 1-1/4" | 157 | 28.5 | 144.9 | 73.5 | 31.80 | 1.65 |
| 40 | 1-1/2" | 190 | 34.8 | 188.9 | 84.5 | 38.10 | 1.65 |
| 50 | 2" | 204 | 47.5 | 188.9 | 93.2 | 50.80 | 1.65 |
| 65 | 2-1/2" | 254 | 60.2 | 255.3 | 131.8 | 63.50 | 1.65 |
| 80 | 3" | 280 | 72.9 | 260.8 | 140.0 | 76.20 | 1.65 |
| 100 | 4" | 306 | 97.4 | 322.2 | 173.6 | 101.6 | 1.65 |
